COLD PLANERS, RECYCLERS & STABILIZERS
Road Milling & Soil Stabilization Tools
Build a more predictable tool-change plan with carbide picks and assemblies matched to pavement, aggregate, cutting depth and machine power.
APPLICATION FIT
Where this solution applies
Operating tasks
- Asphalt and concrete milling
- Full-depth reclamation
- Soil stabilization and base recycling
- Rumble strips and precision profiling
Buying & engineering roles
- Road contractors
- Rental fleet managers
- Drum rebuilders
- Consumables distributors
WORKING CONDITIONS
Inputs that control grade and geometry
A useful recommendation starts with the load, environment and mating system. Include measured data when available and describe field conditions when it is not.
- Asphalt age, aggregate mineralogy and RAP content
- Cutting depth, speed, water and machine power
- Concrete reinforcement and impact events
- Pick position, rotation and holder condition
COMMON FAILURE MODES
Diagnose the mechanism before changing material
- Fast tip wear or mushrooming
- Carbide fracture after impact
- Poor rotation and one-sided wear
- Brazing, washer or holder failure
ANONYMOUS FIELD DIAGNOSIS
Insert loss traced to supporting steel-body wear

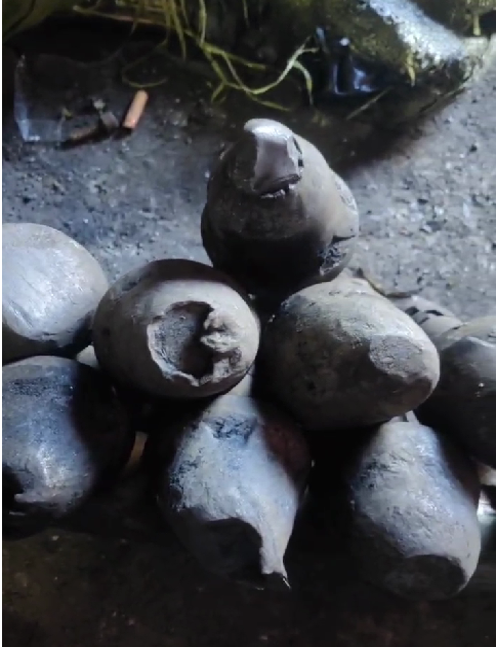

A customer reported carbide insert loss and supplied photographs of multiple worn cutting picks. Ruixin reviewed the visible wear pattern as a complete-tool problem rather than assuming that the carbide grade alone was responsible.
Customer symptom
The customer reported carbide inserts detaching during service and sent overview and close-up photographs for diagnosis.
Photo-based diagnosis

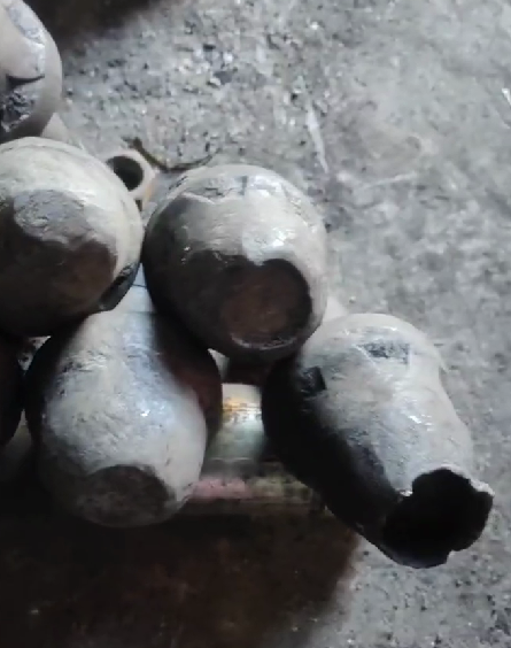

The visible wear pattern indicated that the steel body had worn back around the insert location. As supporting material was lost, the carbide could no longer remain adequately supported.
Corrective action

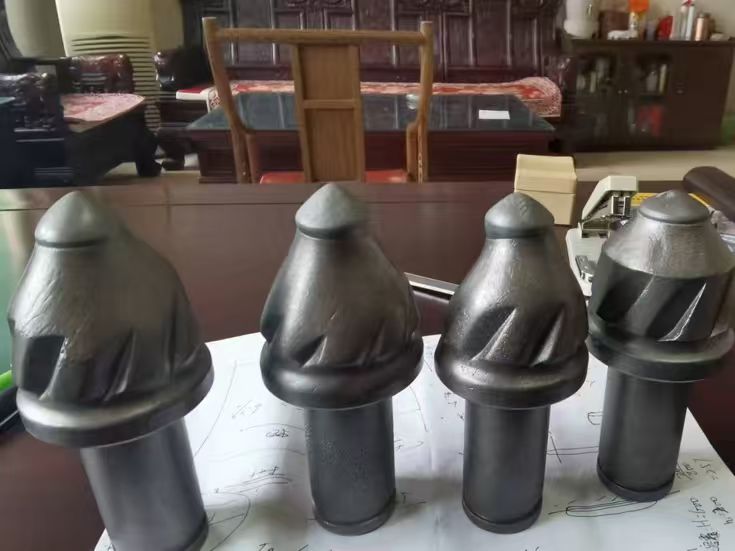

Ruixin advised changing to a more wear-resistant steel-body material and reviewing the body support and insert interface as one assembly.
Reported result
After the body-material change, the customer reported a normal wear pattern. Test hours, metres and a comparative service-life percentage were not recorded, so no quantified life claim is made.
Evidence scope
Anonymous field diagnosis based on customer-supplied photographs and follow-up feedback. The equipment model, operating material, steel grade codes, test quantity and post-use comparison photograph are still required for a controlled performance case.
Send Failure PhotosCOMPLETE TOOL + CARBIDE
Engineer the interfaces, not only the insert
Assemblies and components
- Road milling picks and carbide tips
- Stabilizer and recycler cutting tools
- Scarifier and trenching teeth
- Toolholders, sleeves and assembled cutters
Custom decisions
- Carbide grade by pavement condition
- Tip profile and shoulder geometry
- Steel body and retention interface
- Drum-position trial and wear comparison
Capability note: complete assemblies are evaluated against the drawing, sample, production volume and available technical evidence. No field-life claim is made until a controlled trial is completed.
VERIFIED COMMERCIAL EVIDENCE
Published evidence for road-milling and stabilization tools
The anonymous field-diagnosis section on this page shows customer-supplied cutting-pick wear photographs and a revised complete-tool photograph. The catalogue evidence below is a Ruixin studio product photograph and the current published specification for milling-cutter carbide tips; the supplied case note does not identify a road machine or pavement.

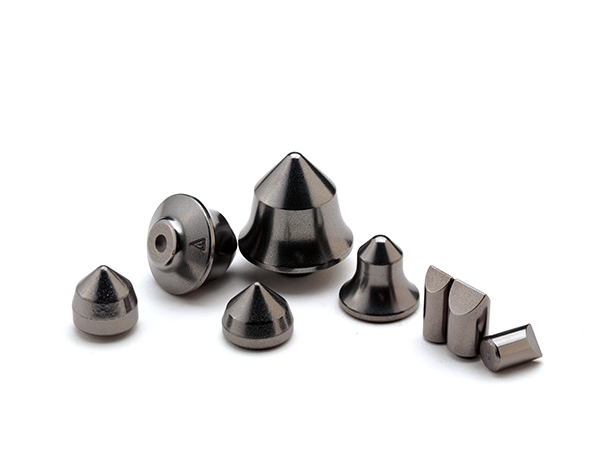

Road-milling carbide tip geometries
Ruixin studio product photograph of published road-milling tip forms. Steel body, washer, holder and drum position are outside the evidence shown here.
Open source product →Published road-tool grades
SR7X, SR8C, SR10C, SS16CB and SS18CB are published with density 14.45–14.70 g/cm³, HRA 87–91, TRS at least 2000–2400 MPa and grain size 1–6 μm.
View grade data →Custom interface scope
The product page publishes drawing-based carbide geometry, shank interface and brazing-profile review. Complete pick and holder compatibility are confirmed only after sample or drawing approval.
View custom scope →Sample and delivery scope
Published terms list 20–50 pieces for sampling, normally 5–7 days, and typical bulk production from 500 pieces per grade in 3–4 weeks, subject to geometry and volume.
View order terms →Inspection documentation
Shipment material test records are published for hardness, density and grain structure. Assembly, braze and dimensional reports must be defined for a complete-tool project.
View inspection scope →Evidence status
The anonymous cutting-pick diagnosis demonstrates complete-tool failure analysis, but the supplied case note does not identify the machine or pavement. A controlled road-milling case still requires the machine, pavement, cutting depth, drum position, steel grade codes, test quantity and duration, a post-use comparison photograph, baseline consumption and measured result. No machine-brand compatibility or quantified life claim is made.
Submit approved evidence or project detailsRECOMMENDED PRODUCT FAMILIES
Use product pages for grades, dimensions and standard forms
These families are starting points. Final grade, size, tolerance and assembly scope are confirmed from working conditions.
CUSTOM DEVELOPMENT
A practical path from evidence to production
1
Drawing or sample review
2
Working-condition and failure analysis
3
Grade, geometry and joining proposal
4
Sample manufacture and inspection
5
Field test, feedback and batch release
Material review
Carbide system, grain size and binder are selected against the application requirement.
Drawing control
Critical dimensions, interfaces and inspection scope are confirmed before sampling.
Sample testing
Trial quantities and field feedback establish evidence before scale-up.
Project documentation
Inspection and material documents are agreed according to project scope.
CORE TECHNICAL GUIDES
Selection and failure-analysis guides
TECHNICAL LIBRARY
Guides organized by engineering decision
Use these supporting articles for selection, failure diagnosis, operating review and purchasing preparation.
Selection
Failure diagnosis
- Road Reclaimer vs Cold Planer Carbide Picks: How to Select the Right Grade
- Road Milling Carbide Picks: Why Batch Consistency Matters More Than Hardness
- Annual Carbide Pick Supply Contracts — Procurement Guide
- Carbide Pick Thin Bonded Overlay — Depth Control | Ruixin
- Carbide Pick Rumble Strip Milling — Grade Guide | Ruixin
- Hydraulic vs Mechanical Pick Retention for Milling | Ruixin
- Bridge Expansion Joint Carbide Pick Grade Guide | Ruixin
- Carbide Pick Wear vs. Diurnal Temp Cycles | Ruixin
- Bus Lane Milling Pick Grade — Transit Corridor | Ruixin
- Carbide Pick Impact — Pavement Sensor Damage Guide | Ruixin
- Carbide Pick Wear Plastic-Modified Asphalt — Grade Guide
- Counterfeit Carbide Picks: 6 Detection Methods | Ruixin
- Asphalt Oxidation & Carbide Pick Wear Rate | Ruixin
- Carbide Picks for Manhole Cover Milling: Impact Wear Guide
- China vs Europe Milling Pick Carbide Grade | Ruixin
- Tropical Humidity Carbide Pick Corrosion Guide | Ruixin
- Road Milling Pick Lateral Wear — Roundabout Physics | Ruixin
- Road Milling Pick Hardness vs Toughness — Decision Framework
- Cold Planer Bid Costs — Carbide Pick Estimating Guide
- Pick Consumption Per Ton — Milling Job Estimator | Ruixin
- Carbide Pick Wear on Segmented Milling Drums | Ruixin
- Side Edge Carbide Pick Wear — Grade Selection | Ruixin
- SFRC Milling Carbide Picks — Wear & Grade Selection
- Milling Machine Power Class — Carbide Grade Match for Picks
- Gage Row Pick Grade Rotation: Extend Drum Change Intervals
- Toll Plaza Concrete Asphalt Carbide Pick Wear — SR10C
- Road Milling Carbide Cross Slope Pick Wear — Ruixin
- Road Milling Carbide Pick Wear in Granular Sub-Base | Ruixin
- Coastal Salt Spray Carbide Pick Corrosion Guide | Ruixin
- Patch Repair Milling Carbide Grade — SR8C Guide | Ruixin
- Steel Slag Asphalt Carbide Pick Wear Grade Guide | Ruixin
- Carbide Pick Noise & Vibration Control — Urban Milling
- Carbide Pick Grade for Residential Street Milling | Ruixin
- Carbide Pick Wear in Snow & Ice Pavement Cold Milling
- Multi-Generational Carbide Pick Wear Data Analysis | Ruixin
- Carbide Pick Asphalt Additive Chemical Wear — SR7X vs SR8C
- Carbide Pick High Altitude Milling: SR7X vs SR8C | Ruixin
- Carbide Pick Fatigue S-N Curve Prediction | Ruixin
- Road Milling Carbide Picks: Utility Strike Guide | Ruixin
- Carbide Picks for Desert Asphalt Road Milling | Ruixin
- Thermal Wear Detection for Milling Picks | Ruixin Carbide
- Carbide Pick Laser Cladding vs Replacement Cost | Ruixin
- Curved Path Milling Pick Wear: Inside vs Outside | Ruixin
- Carbide Picks Epoxy-Modified Asphalt Chemical Wear | Ruixin
- Airport Runway vs Taxiway Carbide Pick Wear | Ruixin
- Glass Bead Abrasion on Road Milling Carbide Picks | Ruixin
- Utility Cover Collision — Carbide Pick Wear Guide | Ruixin
- Stop-Related Carbide Pick Damage: Prevention Guide | Ruixin
- Ultrasonic Carbide Pick Wear Measurement — NDT Guide
- Tropical Climate Carbide Pick Wear: SR8C & SR10C Guide
- Carbide Pick Wear Near Concrete Barriers — Grade Guide
- Pick Wear — Adjacent Traffic Vibration Guide | Ruixin
- Belt Speed & Carbide Pick Wear in Road Milling | Ruixin
- Quartzite Carbide Pick Wear — Road Milling Guide | Ruixin
- Cyclic Loading Carbide Pick Fatigue — Cobalt Binder | Ruixin
- Carbide Pick Cutting Force Wear Monitoring Guide | Ruixin
- Carbide Pick Polymer Binder Chemical Wear Explained | Ruixin
- Carbide Iron Impact in Road Milling — Grade Guide | Ruixin
- RAP Blend Carbide Wear Grade Guide — Road Milling | Ruixin
- Grinding vs Milling — Pavement Restoration Guide | Ruixin
- Carbide Picks for Cobblestone Milling — Grade Guide | Ruixin
- IoT Predictive Pick Replacement — Milling Drums | Ruixin
- Carbide Pick AE Wear Monitoring — Road Milling | Ruixin
- Cement Treated Base Recycling Carbide Pick Wear | Ruixin
- Conical vs Flat Toolholder for Road Milling Picks | Ruixin
- FDR Carbide Pick Wear: Grade Guide for Road Milling | Ruixin
- Road Milling Pick Labor vs Consumable Cost | Ruixin
- WMA vs HMA — Carbide Pick Wear in Warm Mix Asphalt | Ruixin
- Carbide Pick Nose Radius Guide — Wear Rate Impact | Ruixin
- Helical Drum Carbide Pick Wear — Pattern & Grade | Ruixin
- Carbide Pick Reflective Cracking — Grade Selection | Ruixin
- Carbide-Steel Interface Failure in Milling Picks | Ruixin
- Profiling vs Planing: SR8C SR7X Carbide Pick Grade Guide
- Shoulder Drop-Off Milling Wear | Carbide Pick Grade Strategy
- Road Milling Carbide Pick Procurement Planning | Ruixin
- Carbide Pick Wear in Road Milling — Moisture Guide | Ruixin
- Asphalt Fillers & Carbide Pick Wear — Grade Guide | Ruixin
- Carbide Pick HAZ — Brazing Grain Growth Guide | Ruixin
- Silica Aggregate Carbide Pick Wear | Road Milling Guide
- Asphalt Binder Content & Pick Wear — Grade Guide | Ruixin
- Base Aggregate Hardness Carbide Pick Wear — Milling Guide
- Hybrid Grade Drum Configuration for Road Milling | Ruixin
- Carbide Pick Brazing Alloy Selection Guide | Ruixin
- Carbide Picks for Asphalt Milling — Temperature Gradient Wear Guide | Ruixin
- Cobalt Phase Shift in Carbide Milling Picks | Ruixin
- Bimodal Grain Carbide Picks — Road Milling Wear Guide
- Carbide Tribochemical Wear in Asphalt Milling Guide — Ruixin
- WC Grain Contiguity & Road Milling Pick Wear | Ruixin
- Carbide Pick Wear vs Drum Torque — Prediction Guide | Ruixin
Procurement and quality

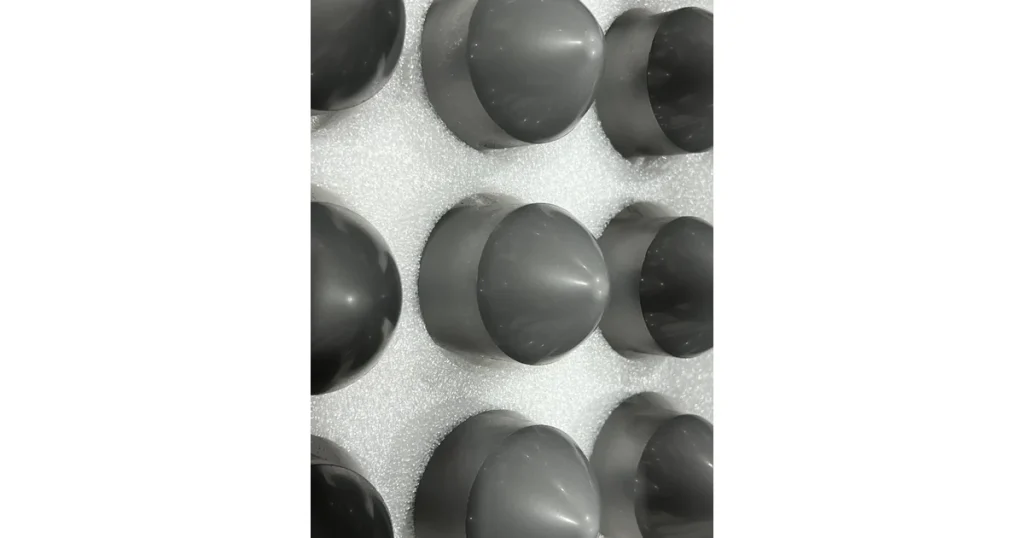

- Tungsten Carbide Road Milling Inserts: Selection Guide for B2B Buyers
- Carbide Pick Evaluation — 7-Step Procedure for Contractors
- Carbide Pick Supplier Scorecard for Road Milling | Ruixin
- Road Milling Carbide Grade Cross-Reference: Ruixin vs OEMs
- Road Milling Carbide Pick RFQ Scorecard — Compare Bids
- Road Milling Carbide Picks — Procurement Checklist | Ruixin
- Road Milling Pick Dimensions: C3-C8 Chart | Ruixin
- Road Milling Carbide Pick Inventory Management | Ruixin
FAQ
Questions engineering teams ask first
What causes one-sided wear on a milling pick?
Restricted pick rotation, holder wear, material packing, incorrect seating or drum-position loads can all contribute. The holder and installation condition should be reviewed with the carbide grade.
Can one carbide grade cover asphalt and concrete?
A common grade may be workable for some fleets, but concrete impact and abrasive asphalt can demand different toughness and wear resistance. We recommend comparing actual job mixes and failure photographs.
Can Ruixin supply the complete road milling pick?
Complete tool supply can be evaluated, including carbide tip, steel body and assembly. Drawings or an unused sample help confirm dimensions and interface requirements.
